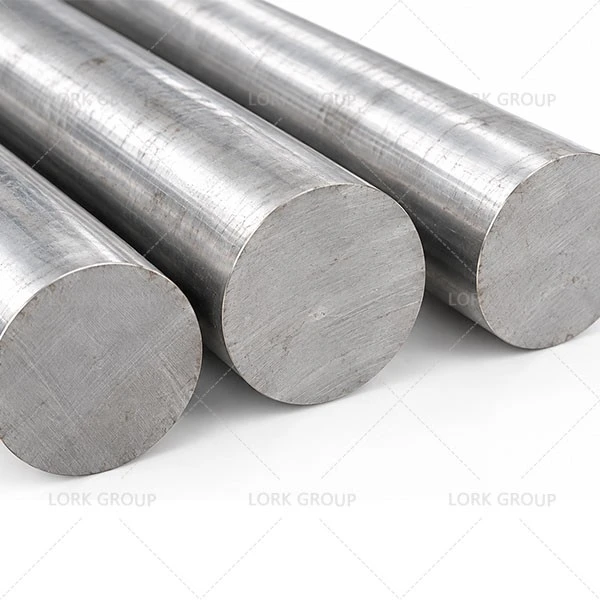

Incoloy 909 Bar Cov
Khoom Description
Incoloy 909 (UNS N19909 / W.Nr. 1.4965 / GH2909) yog hlau-nickel-cobalt-raws li, nag lossis daus- tawv, qis- nthuav dav superalloy hauv daim ntawv bar. Tsim los ntawm Special Metals Corporation (tam sim no yog ib feem ntawm PCC Group), nws muaj cov yam ntxwv tseem ceeb uas suav nrog kev tswj xyuas qhov qis thiab tsis tu ncua coefficient ntawm thermal expansion thiab ib qho kev hloov pauv tsis tu ncua ntawm elasticity ntawm qhov kub txog 650 degree, thaum tib lub sijhawm muab lub zog siab.
Key Performance Advantages
Tsawg heev thiab tsis tu ncua coefficient ntawm thermal expansion
Qhov nruab nrab coefficient ntawm thermal expansion yog kwv yees li 7.7 × 10⁻⁶ /℃nyob rau hauv thaj tsam ntawm chav tsev kub txog li 425℃(Curie kub)-kwv yees li ib nrab ntawm cov pa siab - kub alloys.
Tsis tu ncua modulus ntawm elasticity
Lub modulus ntawm elasticity tseem zoo li qub los ntawm chav tsev kub txog li ntawm 650 degree, ib tug tshwj xeeb yam ntxwv txawv nws los ntawm feem ntau high - kub alloys.
Siab zog
Ua kom muaj zog los ntawm ″ theem (Ni₃Nb) nag lossis daus, cov hlau ua tiav chav -kub tensile lub zog ntawm 1172–1276 MPa thiab lub zog tawm los ntawm 896–1034 MPa nyob rau hauv cov laus.
Kub kub zoo- ua haujlwm plasticity thiab weldability
Los ntawm kev ua kom zoo ntawm silicon thiab txhuas cov ntsiab lus, Alloy 909 nthuav tawm kev txhim kho kub - ua haujlwm plasticity thiab isotropy; Nws yog sib xws nrog ntau yam vuam txoj kev, nrog rau argon arc vuam, chaw vuam, brazing, thiab electron beam vuam.
Reference bar specifications
| Kub-rolled bars | Φ10-100 hli |
| Forged tuav | Φ100 - 350 hli |
Kev xa khoom: Feem ntau muab rau hauv cov tshuaj - kho thiab hnub nyoog laus; kev cai loj thiab txiav - mus rau - ntev cov kev pab cuam muaj.
Nco tseg: Cov ntaub ntawv saum toj no tsuas yog siv rau kev siv xwb. Thov hu rau peb txog cov specifications, qhov ntev, los yog customization yuav tsum (peb tseg txoj cai ntawm kev txhais lus zaum kawg).📧layla@lorkgroup.com | 📞 +86 199 3707 5488
Kev xav txog kev yuav khoom
① Kev lees paub tus qauv:Qhia meej meej txog tus qauv siv tau thiab xav tau Daim Ntawv Pov Thawj Kev Xeem Khoom (MTC) uas suav nrog cov tshuaj lom neeg, cov khoom siv kho tshuab, thiab cov ntaub ntawv kho cua sov.
② Kev pom zoo:Qhia meej meej txog qhov xwm txheej-txawm li cas los xij- kho ntxiv rau cov laus lossis kev daws teeb meem- kho- raws li cov khoom thiab kev ua haujlwm sib txawv ntawm cov xeev no.
③ Coating Requirements:Vim tias tsis muaj chromium, ntsuas qhov xav tau ntawm MCrAlY lossis aluminide txheej thaum cov khoom siv nyob rau hauv siab -kub oxidizing atmospheres.
④ Qhov txawv ntawm Inconel 718:Thaum ob qho tib si alloys muaj zog zoo sib xws, cov coefficient ntawm thermal expansion (CTE) ntawm 909 yog kwv yees li ib nrab ntawm 718, ua rau nws zoo tagnrho rau kev tshem tawm - cov khoom rhiab heev; 718 muaj oxidation tsis kam. Lawv feem ntau siv nyob rau hauv tandem (piv txwv li, 909 rau sab hauv qis -expansion nplhaib thiab 718 rau sab nrauv load-cov kabmob / oxidation-cov nplhaib resistant).
tshuaj muaj pes tsawg leeg
| Ni | 35.0-40.0 |
| Co | 12.0-16.0 |
|
Nb |
4.3-5.2 |
| Ti | 1.3-1.8 |
| Si | 0.25-0.50 |
| Al | Tsawg dua los yog sib npaug li 0.15 |
| C | Tsawg dua los yog sib npaug li 0.06 |
| Fe | So |
Nco tseg: Incoloy 909 tsis muaj chromium (Cr Tsawg dua lossis sib npaug li 0.50%), uas yog qhov tseem ceeb rau nws cov coefficient qis heev ntawm thermal expansion; Txawm li cas los xij, qhov no kuj ua rau muaj kev txwv siab -kub oxidation tsis kam, feem ntau xav tau cov txheej txheem tiv thaiv ntev - kev pabcuam hauv oxidizing cua.
Mechanical zog
| Performance Indicators | Chav ntsuas kub (20 degree) | 650 degree |
| Tensile zog | 1172-1276 MPa siab | Ntau dua lossis sib npaug rau 1034 MPa |
| Lub zog muaj zog (0.2%) | 896-1034 MPa | Ntau dua lossis sib npaug rau 862 MPa |
| Elongation | 8 – 15% | 25% |
Incoloy 909 tuav lub zog zoo ntawm 650 degree; nws siab - kub tawm lub zog (Ntau dua lossis sib npaug rau 862 MPa) txawm mus txog chav tsev- qhov kub thiab txias ntawm qee yam alloys.
Lub cev muaj zog
| Qhov ntom | 8.19-8.26 g / cm³ |
| Melting ntau | 1395 – 1430 degree |
| Curie kub | 400-455 degree |
| Modulus ntawm elasticity | Kwv yees li . 159 GPa |
| Coefficient ntawm thermal expansion (20-427 degree) | 7.7 × 10⁻⁶ / degree |
| Thermal conductivity | Kwv yees . 14.8 W/(m·K) |
| Hluav taws xob resistivity | Kwv yees li . 1.1 μΩ·m |
Qhov tseem ceeb ntawm Curie qhov kub thiab txias: Hauv qab li ntawm 425 degree, lub alloy muaj ferromagnetism thiab qis heev, tas li coefficient ntawm thermal expansion; saum toj no qhov kub thiab txias, nws hloov mus rau lub xeev paramagnetic, thiab expansion coefficient pib nce. Yog li ntawd, qhov zoo tshaj plaws ua haujlwm kub ntau rau 909 alloy yog qis dua 425 degree.
Qhov sib txawv ntawm Incoloy 909 thiab Inconel 718
Txawm hais tias ob qho tib si yog nag lossis daus- cov khoom hnyav superalloys, lawv qhov kev thov cov xwm txheej tau tawm tsam, ua rau lawv ua "ua tiav" khub hauv kev xaiv cov khoom siv rau aero- cav.
Yog tias 718 tau siv los hloov 909, thaum nws lub zog txaus, nws cov thermal expansion ntau dhau yuav ua rau tsis muaj kev tswj hwm kub - xeev clearances - ua rau txo qis kev ua tau zoo ntawm qhov zoo tshaj plaws, lossis kev siv tshuab ua kom tsis zoo.
Yog tias 909 tau siv los hloov 718, cov hlau yuav ua tsis tiav vim oxidation ceev thaum raug kub siab tshaj 650℃lossis rau oxidizing ib puag ncig.
Yog li ntawd, ob qho tib si nquag siv nyob rau hauv tandem thaum lub sij hawm aero- cav tsim: 909 yog ua hauj lwm rau cov khoom uas yuav tsum tau muaj kev ruaj ntseg (xws li turbine casings thiab foob rings), thaum 718 yog siv rau qhov chaw uas yuav tsum tau muaj zog thiab corrosion kuj (xws li turbine disks, hniav, thiab fasteners).
Yog tias koj xav paub ntau ntxiv ntawm Incoloy 718 bar Tshuag, koj tuaj yeem nyem rau ntawm daim duab txuas los sib piv nws ncaj qha nrog 909 alloy thiab xaiv cov kev xaiv uas haum tshaj plaws.
