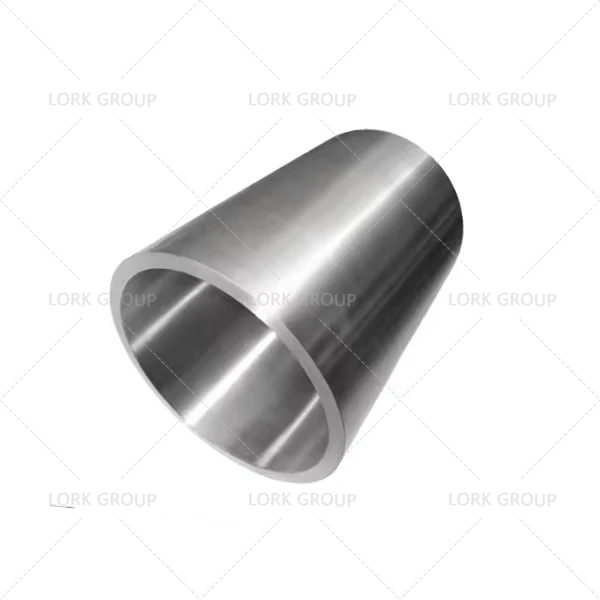

Inconel 725 Nickel Alloy Yeeb Nkab (ASTM B805, UNS N07725)
Khoom Taw Qhia
Alloy 725 feem ntau hu ua "tus huab tais ntawm kev ntxhov siab corrosion cracking tsis kam" vim nws cov qauv tsim tshwj xeeb rau cov roj acidic thiab roj av ib puag ncig. Nws kuj boasts qhov zoo xws li tsis tshua muaj zog, zoo heev tiv thaiv corrosion, thiab muaj zog txheej txheem dependence (feem ntau tseem ceeb, ib tug kom meej meej lub xeev kev kho cua sov), ua rau nws yog ib tug zoo tagnrho xaiv rau cov neeg muas zaub nyob rau hauv cov roj thiab roj kev lag luam.
Peb qhov kev paub ntau yam tau ua rau peb muab Inconel 725 npib tsib xee alloy kav hauv qhov loj me nrog rau sab nraud diameters li ntawm 6mm txog 1219mm thiab thicknesses ntawm 0.5mm txog 100mm. Peb cov kev pabcuam machining tso cai rau koj xaiv qhov ntev uas xav tau. Txhawm rau daws txhua qhov kev txhawj xeeb koj yuav muaj txog koj thawj zaug kev sib koom tes, peb cov MOQ tuaj yeem qis li 30kg rau cov qauv kuaj. Yog li ntawd, peb tau txais ntau haiv neeg ntawm cov neeg siv khoom, pab txhawb rau Lork Group lub zog hauv kev siv cov khoom siv hauv kev lag luam roj thiab roj thoob ntiaj teb.
Kev Qhia Txog Kev Muag Khoom thiab Cov Qauv Kev Lag Luam
Raws li peb qhov kev yuav khoom, kev nug kev tshaj lij rau Inconel 725 npib tsib xee alloy yeeb nkab tuaj yeem pab koj ua tiav koj qhov kev npaj yuav khoom thawj zaug. Nws feem ntau suav nrog cov hauv qab no:
1. Khoom siv:
Cov Khoom Siv Hluav Taws Xob: ASTM B805 / ASME SB805 (Cov no yog cov qauv tso cai rau cov kav dej).
Cov Khoom Siv Qib: UNS N07725 lossis tsuas yog Inconel 725.
2. Specifications thiab Dimensions:
Outer Diameter (OD) thiab Tolerances (piv txwv li, +/- 0.1mm).
Phab ntsa Thickness (WT) thiab kam rau ua (piv txwv li, +/- 10%).
Length (taw ntev lossis random ntev). Daim Ntawv Thov Tshwj Xeeb (Cov Cai Ua Haujlwm)
3. Kev Xa Khoom:
Qhia meej meej: "Kev daws teeb meem + Kev laus rau 725 Tus Txheej Txheem", lossis tsuas yog "hnub nyoog rau 725 yam". Qhov no guarantees kev ua tau zoo.
4. Cov Lus Qhia Tshwj Xeeb:
Tsis yog-Kev kuaj puas tsuaj: 100% eddy tam sim no kuaj (ET) lossis kuaj ultrasonic (UT), raws li ASTM E426/E213 tus qauv.
Qhov yuav tsum tau muaj: Polishing℃ntawm sab hauv thiab sab nrauv (piv txwv li, Ra tsawg dua los yog sib npaug rau 0.8μm), muaj los yog tsis muaj oxide nplai (feem ntau yuav tsum tau pickling thiab passivation).
Kev Kho Mob Kawg: Chamfering thiab tiv thaiv yuav tsum tau.
5. Marking thiab ntim:
Cov cim tas mus li (piv txwv li, stamped seals) thiab cov ntaub ntawv pov thawj yam yuav tsum tau ua.
Peb cov lus qhia kawg kawg yog ua raws li cov hauv qab no tsav tsheb:
Cov khoom siv raw:(nickel, molybdenum, thiab lwm yam) cov nqi yav tom ntej yog lub hauv paus.
Specifications:Nyias-walled, me- txoj kab uas hla yog qhov nyuaj dua los tsim thiab muaj tus nqi siab dua.
Qhov xwm txheej:725-hnub nyoog cov hlab ntsha yog kim kim dua li cov hlab ntsha annealed (vim ntxiv kev kho cua sov thiab cov nqi ntsuas kev ua haujlwm).
Kev yuav khoom:Cov khoom no feem ntau yog tsim nyob rau hauv me me batch ntawm ib qhov project; loj -kev yuav khoom loj muaj chav txwv rau kev sib tham.
Qhov tob ntawm kev ua:Cov kev pabcuam cuam tshuam nrog kev ua haujlwm ntxiv ib txwm hais kom tus nqi siab dua.
Cov txheej txheem tsim khoom thiab cov kev sib tw
Kev nkag siab txog kev ua haujlwm nyuaj thiab cov ntsiab lus tseem ceeb yog qhov tseem ceeb rau kev nkag siab txog cov khoom muag quotes thiab cov hnub xa khoom, thiab tseem muab kev txhawb nqa tob rau kev ua tiav thiab kev tsim khoom tiav. Txawm hais tias yuav cov khoom siv raw, machining qhov yooj yim, los yog precision -machined qhov chaw, cov ntsiab lus hauv qab no yuav tsum tau sau tseg los ntawm cov neeg ua haujlwm txawj ua haujlwm txog kev ua haujlwm thib ob:
Yooj yim rau tshuab:Inconel 725 npib tsib xee alloy yeeb nkab yog ib qho nyuaj heev - rau - cov khoom siv tshuab, ua rau muaj kev ua haujlwm hnyav thiab cov cuab yeej tseem ceeb hnav. Qhov no txhais tau rau cov nqi machining siab.
Kev kho cua sov yog qhov tseem ceeb:Qhov kub, lub sij hawm, thiab txias npaum li cas ntawm kev laus kho cua sov yuav tsum tau tswj nrog huab precision. Txawm tias qhov kub sib txawv ntawm ob peb degrees Celsius tuaj yeem ua rau kev ua haujlwm tsis zoo.
Cold ua hauj lwm Prone rau Cracking:Txias dabtsi yog khoov thiab nthuav dav kev ua haujlwm ntawm alloy 725 hauv nws qhov siab - lub zog muaj zog yog qhov muaj kev cuam tshuam rau kev tawg, yuav tsum muaj kev paub dhau los thiab cov txheej txheem nruj heev.
Yog xav paub ntxiv, thov hu rau:
Email:susan@lorkgroup.com
WhatsApp pawg:+86 19937075488
Peb Cov Lus Qhia:Yog tias koj cov khoom muaj cov duab tsis yooj yim, ua qhov tseem ceeb rau cov chaw muag khoom uas muaj ib qho - nres kev pabcuam "pipe + kev kho cua sov + kev ua haujlwm sib sib zog nqus" (Lork Group cov khoom siv dav dav tuaj yeem ua tau raws li qhov xav tau no). Qhov no yog qhov txhim khu kev qha thiab tus nqi ntau dua - zoo dua li kev muab cov khoom siv raw koj tus kheej thiab kev ua haujlwm tawm.
Tshuaj muaj pes tsawg leeg
(Tswj tus nqi, xyuas qhov ntau thaum txheeb xyuas)
| Qhov hnyav% | alloy 725 |
| Ni | Bal |
| Cr | ~21% |
| Mo | ~8% |
| Nb+Ta | ~3.6% |
| Fe | ~10% |
Mechanical Properties
(Saib rau ASTM B805 / ASME SB805 tus qauv, tus nqi raug cai ntawm chav tsev kub)
Cov xwm txheej: 725 (kev daws teeb meem + kev laus) - Qhov no yog cov xwm txheej feem ntau siv hauv kev yuav khoom.
| Khoom siv | (Lub xeev Annealed) |
| Tensile zog MPa | Ntau dua lossis sib npaug li 1100 MPa |
| Yield zog MPa | Ntau dua lossis sib npaug li 760 MPa |
| Txo ntawm cheeb tsam% | Ntau dua lossis sib npaug li 20% |
| Hardness HRC | 30-38 |
Qhov xwm txheej: Annealed (kev daws teeb meem- kho) - Lub xeev mos, ua kom yooj yim rau kev ua haujlwm txias.
Lub zog qis dua, zoo plasticity, tab sis tsis muaj ultra{0}}lub zog siab thiab SCC tsis kam ntawm 725 temper.
Cov ntsiab lus tseem ceeb ntawm kev yuav khoom: Nws yog ib qho tseem ceeb kom paub meej seb koj xav tau "kev mob annealed" lossis "725 kev laus."Tus nqi, kev ua tau zoo, thiab kev siv ntawm ob qhov sib txawv heev. Feem ntau ntawm cov cuab yeej downhole thiab cov khoom tseem ceeb xav tau "725 mob."
Cim npe nrov: Hot Tags: inconel 725, npib tsib xee alloy yeeb nkab, astm b805, uns n07725, Tuam Tshoj npib tsib xee alloy yeeb nkab manufacturers
